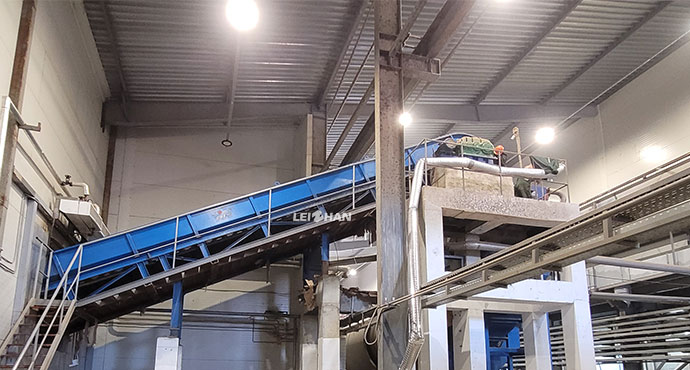

Copy Paper Pulping Line Operation Site

Leizhan Company configured the equipment to meet the specific requirements of the paper mill’s copy paper pulping line. Throughout the project’s implementation—spanning equipment installation, on-site commissioning, and the production phase—our team maintained continuous communication with the client, providing tailored technical support based on actual site conditions. The client expressed great satisfaction with both the equipment’s performance and our service.

Copy Paper Pulping Line Information

Chain Conveyor: B=1200mm, length: 24m
D Type Hydrapulper: 5m³, H=10mm, C=3~5%
High Density Cleaner: Q=3000~4500l/min, C=3~5%, P=0.2~0.5MPa
Conical Refiner: Ø450mm, C=3~5%
Double Disc Refiner: Ø450mm, C=3~5%
Inflow Pressure Screen: A=0.75m2, S=0.35mm, C=0.4~0.8%

Leizhan Company will continue to provide reliable pulping and paper making equipment solutions to more paper enterprises, leveraging energy-efficient technologies and a comprehensive service system.
