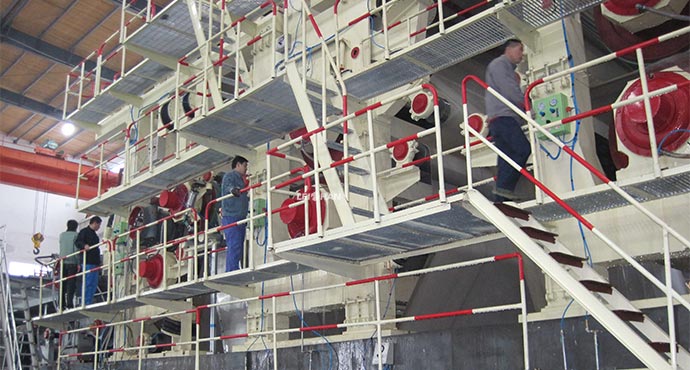

5600mm Corrugated Paper Machine

The 5600mm corrugated paper machine, a flagship product from Leizhan Company, is a wide-format unit designed for large-scale corrugated base paper projects. It enables operators to easily monitor critical parameters such as sheet formation, moisture content, and tension. The rolls undergo high-precision dynamic balancing, ensuring minimal vibration during high-speed operation and a low equipment failure rate, thereby effectively reducing long-term operation and maintenance costs.

Technical Parameters

Trimmed width: 5600mm
Basis weight: 70-160GSM
Rolling paper width: 5660mm
Production capacity: 750t/d
Working speed: 780m/min
Dynamic balance speed: 1000m/min
Transmission speed: 800m/min
Crawling speed: 25m/min
Gauge: 7400mm

Leizhan Company is a manufacturer of pulp and paper machinery, possessing strong capabilities in the R&D and production of large-scale paper making equipment, with numerous projects successfully commissioned both domestically and internationally.
